Understanding Mechatronic Hardware and Software

Introduction: From Code to Physical Reality

In your previous work with Object-Oriented Programming, you learned to create objects in code that represent real-world things. Now, you'll bring those objects to life—literally. Mechatronics is where your software engineering skills meet the physical world, allowing you to sense, think, and act in real environments.

Throughout this module, you'll be using the Raspberry Pi Pico microcontroller programmed with MicroPython, along with the comprehensive set of components from your Freenove Ultimate Starter Kit.

What is Mechatronics?

Definition

Mechatronics is the interdisciplinary field combining mechanical engineering, electronics, computer science, and control engineering to design and create intelligent systems that can sense, decide, and act.

Mechatronic systems excel at performing tasks that are:

Repetitive - executing the same action thousands of times without fatigue or variation
Precise - achieving accuracy beyond human capability
Fast - responding in milliseconds to environmental changes
Reliable - operating consistently in hazardous or inaccessible environments
Cost-effective - reducing labor costs and improving efficiency

Core Components of Mechatronic Systems

Every mechatronic system consists of three fundamental elements:

Sensors (INPUT) - Devices that detect physical phenomena and convert them to electrical signals
Microcontroller (CONTROL) - The "brain" that processes sensor data and makes decisions
Actuators (OUTPUT) - Devices that convert electrical signals into physical action

graph LR
    A[Sensors: Temperature, Distance, Light] --> B[Microcontroller: Raspberry Pi Pico+ MicroPython Code]
    B --> C[Actuators: Motors, Servos, LEDs]
    C -.Feedback.-> A
    style B fill:#e1f5fe

Connecting to Your Previous Learning

Your OOP and project management skills directly transfer to mechatronics:

Software Engineering Concept	Mechatronics Application
Class definitions	Hardware component abstractions (Sensor class, Motor class)
Object instantiation	Initialising physical devices with specific pin configurations
Methods	Functions controlling device behaviour (read_temperature(), move_servo())
Encapsulation	Hiding hardware complexity behind simple interfaces
Inheritance	Creating specialised sensor types from base Sensor class
Testing & debugging	Unit testing individual components before system integration
Documentation	Technical specifications, wiring diagrams, component data sheets
Iteration	Prototyping → Testing → Refining → Deploying

Applications of Mechatronic Systems

Mechatronic systems have transformed nearly every industry, enabling automation, precision, and capabilities beyond human limits.

Syllabus Outcome

PM-UM-03 Outline applications of mechatronic systems in a variety of specialised fields

Industry Applications

Manufacturing & Industry 4.0

Robotic Assembly Lines

Automated pick-and-place systems achieving 99.9% precision
Collaborative robots (cobots) working alongside humans
Quality inspection systems using computer vision
Automated warehousing with autonomous mobile robots (AMRs)

Smart Factories

Real-time monitoring of production equipment
Predictive maintenance using vibration and temperature sensors
Automated inventory management
Just-in-time manufacturing coordination

Transportation & Automotive

Vehicle Systems

Engine Management: Sensors monitor temperature, pressure, oxygen levels; ECU optimises fuel injection and timing
Safety Systems: ABS (Anti-lock Braking), ESC (Electronic Stability Control), airbag deployment sensors
ADAS (Advanced Driver Assistance): Lane keeping, adaptive cruise control, automatic emergency braking
Autonomous Vehicles: LiDAR, radar, cameras integrated with AI for self-driving

Aviation

Fly-by-wire flight control systems
Automated landing systems
Engine thrust management
Satellite navigation and autopilot

Healthcare & Medical

Surgical Robotics

Da Vinci Surgical System: Minimally invasive procedures with enhanced dexterity
Robotic exoskeletons for rehabilitation
Precision radiation therapy systems

Assistive Devices

Prosthetic limbs with sensor feedback and motor control
Automated medication dispensers
Patient monitoring systems
Robotic surgery assistants

Agriculture & Food Production

Precision Agriculture

Autonomous tractors with GPS guidance
Drone-based crop monitoring and spraying
Automated irrigation systems with soil moisture sensors
Robotic harvesting systems

Controlled Environment Agriculture

Greenhouse climate control (temperature, humidity, CO₂)
Hydroponic and aquaponic systems
Automated feeding systems for livestock

Consumer & Home

Smart Homes

Thermostats learning user preferences (Nest, Ecobee)
Security systems with motion detection and cameras
Robotic vacuum cleaners (Roomba)
Smart lighting with occupancy sensors

Entertainment

Animatronics in theme parks
Camera stabilisation systems (gimbals)
Motion simulators and VR systems
Drones for aerial photography

The Mechatronic Revolution

The integration of affordable microcontrollers like the Raspberry Pi Pico, combined with open-source software and accessible sensors, has democratised mechatronics. What once required industrial-scale investment can now be prototyped on a breadboard in a classroom or garage workshop.

Raspberry Pi Pico

Syllabus Outcomes

[PM-UM-05] Identify the hardware requirements to run a program and the effect on code development

Including:

[PM-UM-05.01] Assessing the relationship of microcontrollers and the central processing unit (CPU)
[PM-UM-05.02] The influence of instruction set and opcodes
[PM-UM-05.03] The use of address and data registers

Introduction to Raspberry Pi Pico-W

The Raspberry Pi Pico is a low-cost, high-performance microcontroller board featuring the RP2040 chip. The W stands for wireless.

Raspberry Pi Pico Specifications

Processor: RP2040 microcontroller chip

Dual-core ARM Cortex-M0+ @ 133MHz
264KB on-chip SRAM
2MB on-board Flash memory

Interfaces:

26 × multi-function GPIO pins
3 × 12-bit ADC (Analog-to-Digital Converter)
2 × UART, 2 × SPI, 2 × I²C
16 × PWM channels
USB 1.1 with device and host support

Power:

Operating voltage: 1.8-5.5V
Low power modes for battery operation

Wireless:

Wifi 802.11n, 2.4GHz
WPA3
Bluetooth 5.2
Access point support for 4 clients

Pin Layout and Functions

The Pico-W GPIO pins are color-coded by function:

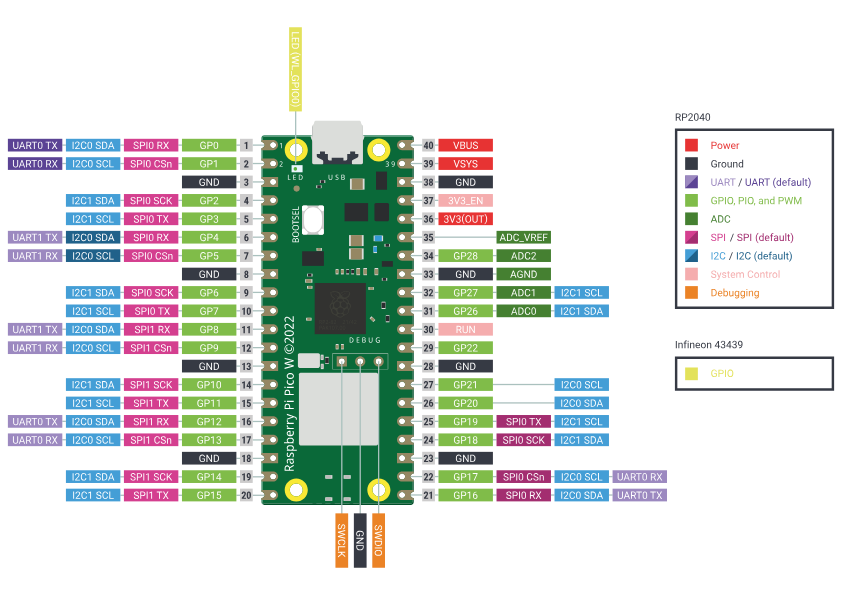

Pico Pinout

Practical Tip: Pin Stickers

The Freenove kit includes pin function stickers you can apply to your breadboard for quick reference. This helps identify which pins to use for sensors, motors, and other components.

Key Features for Mechatronics

1. Dual-Core Processing

The RP2040's two cores allow you to run multiple tasks simultaneously—one core reading sensors while the other controls actuators.

2. PWM on Every GPIO

All GPIO pins can generate PWM (Pulse Width Modulation) signals, essential for:

Controlling servo motor positions
Varying LED brightness
Regulating motor speeds

3. Programmable I/O (PIO)

Advanced feature allowing custom communication protocols and precise timing control.

4. Low Cost, High Availability

At around $8-12 AUD, the Pico is one of the most affordable yet capable microcontrollers available.

MicroPython: Python for Microcontrollers

MicroPython is a lean implementation of Python 3 designed to run on microcontrollers with limited resources.

Why MicroPython?

Advantages:

Familiar syntax: If you know Python, you know MicroPython
Interactive REPL: Test code immediately without compiling
Rich libraries: Pre-built modules for common hardware
Rapid prototyping: Write, test, and modify code quickly
Object-oriented: Perfect for applying your OOP skills

Key Differences from Desktop Python:

Smaller standard library (optimised for embedded systems)
Direct hardware access through machine module
Real-time constraints (no operating system scheduler)
Limited memory requires efficient coding

Basic MicroPython Example

from machine import Pin
import time

# Initialize onboard LED
led = Pin(25, Pin.OUT)  # Pico's onboard LED is on GP25

# Blink forever
while True:
    led.toggle()  # Switch LED state
    time.sleep(0.5)  # Wait 500ms

This simple program demonstrates:

Importing modules: machine for hardware, time for delays
Pin configuration: Setting GP25 as an output
Infinite loop: Embedded systems often run continuously
Hardware control: Direct manipulation of physical components

Development Environment: VSCode

[refer ...]

Microcontrollers vs. Microprocessors

Understanding the distinction between microcontrollers and microprocessors is fundamental to mechatronics.

Syllabus Outcome

[PM-UM-05.01] Assessing the relationship of microcontrollers and the central processing unit (CPU)

The Core Difference

Key Distinction

A microprocessor (CPU) is solely responsible for executing instructions—it's the "brain" but needs supporting components to function
A microcontroller is a complete computer-on-a-chip integrating:
- Microprocessor (CPU)
- Memory (RAM and Flash storage)
- Input/Output peripherals
- Communication interfaces (UART, SPI, I²C)
- Timers and counters
- Analog-to-Digital Converters (ADC)

Analogy: Microprocessor vs. Microcontroller

Microprocessor	Microcontroller
CPU alone	Complete computer
Engine of a car	Entire car (engine, transmission, wheels, controls)
Requires circuit board design with many external components	Ready to use with minimal external components
Examples: Intel Core i7, AMD Ryzen	Examples: RP2040 (Pico), ATmega328 (Arduino Uno), ESP32

Practical Comparison

Aspect	Microprocessor System	Microcontroller System
Integration	Requires RAM chips, ROM chips, I/O controllers, timers	All integrated on single chip
Size	Larger PCB with multiple ICs	Compact, single-chip solution
Power Consumption	Higher (multiple chips)	Lower (optimised for embedded use)
Cost	Higher total system cost	Lower cost per complete system
Best Use Cases	Computers, servers, smartphones	Embedded systems, IoT devices, robotics
Processing Power	Very high (GHz range, multiple cores)	Moderate (MHz range, often single or dual-core)
Memory	GBs of RAM	KBs of RAM

Why Microcontrollers for Mechatronics?

Microcontrollers are ideal for mechatronic applications because they:

Integrate I/O directly: No external chips needed to connect sensors and actuators
Operate in real-time: Deterministic timing for precise control
Low power consumption: Can run on batteries for extended periods
Rugged: Designed for industrial environments (temperature, vibration)
Cost-effective: Entire control system in a single, inexpensive chip
Purpose-built: Optimised for control and monitoring tasks

Hardware Architecture: Inside the RP2040

The Central Processing Unit (CPU)

The RP2040 features a dual-core ARM Cortex-M0+ processor running at up to 133MHz.

ARM Cortex-M0+ Architecture

Designed for embedded systems:

32-bit RISC (Reduced Instruction Set Computer) architecture
Low power consumption
Efficient interrupt handling
Hardware multiply/divide instructions

Dual-core capability:

Core 0 and Core 1 can run independently
Shared memory for inter-core communication
Typical usage: One core for control logic, another for communication

What Does "32-bit" Mean?

A 32-bit processor can:

Process 32 bits (4 bytes) of data in a single operation
Address up to 4GB of memory (2³² bytes)
Handle integer values from -2,147,483,648 to 2,147,483,647 (signed)
Or 0 to 4,294,967,295 (unsigned)

Compare this to an 8-bit microcontroller (like older Arduinos):

Capability	8-bit (AVR)	32-bit (ARM Cortex-M0+)
Max integer value	255 (unsigned)	4,294,967,295 (unsigned)
Math operations	Slower for large numbers	4× faster per operation
Memory addressing	Limited to 64KB directly	Up to 4GB
Floating-point	Software emulation (slow)	Hardware support available

Instruction Sets and Opcodes

What is an Instruction Set?

Definition

An instruction set architecture (ISA) defines all the commands a processor can execute. It's the interface between software and hardware.

Syllabus Outcome

[PM-UM-05.02] The influence of instruction set and opcodes

The RP2040 uses the ARM Thumb-2 instruction set—a mix of 16-bit and 32-bit instructions optimised for:

Code density (small program size)
Performance (fast execution)
Power efficiency

Machine Code vs. Assembly vs. High-Level Languages

High-Level (MicroPython):
    led.value(1)

Assembly Language:
    MOV r0, #1
    STR r0, [r1]

Machine Code (Binary):
    00100000 00000001
    01100001 ...

MicroPython: Human-readable, abstracts hardware details
Assembly: Symbolic representation of machine instructions
Machine Code: Actual binary executed by CPU

Example: ARM Instructions

; ARM Thumb Assembly Examples
MOV r0, #42        ; Move value 42 into register r0
ADD r1, r0, #8     ; Add 8 to r0, store result in r1 (r1 = 50)
LDR r2, [r3]       ; Load value from memory address in r3 into r2
STR r0, [r4]       ; Store r0 value to memory address in r4
CMP r0, r1         ; Compare r0 and r1 (set status flags)
BEQ label          ; Branch to 'label' if equal (if r0 == r1)

Why Instruction Sets Matter for Mechatronics

Timing Precision: Some operations take fixed numbers of cycles, enabling precise timing
Hardware Control: Specialized instructions for bit manipulation and peripheral access
Interrupts: Fast response to sensor events without polling
Power Management: Instructions to enter low-power sleep modes

Memory and Registers

Syllabus Outcome

[PM-UM-05.03] The use of address and data registers

Types of Memory in RP2040

Memory Type	Size	Speed	Purpose	Volatile?
Registers	32-bit × 16	Fastest (0 wait states)	Active calculations, CPU state	Yes
SRAM	264KB	Very fast (few cycles)	Variables, stack, heap	Yes
Flash	2MB	Slower (cached for speed)	Program code, constants	No (persistent)
External	Via SPI/I²C	Slowest	SD cards, EEPROM	Depends

CPU Registers

What are Registers?

Registers are ultra-fast storage locations built directly into the CPU. Think of them as the CPU's "scratch paper" for immediate calculations.

ARM Cortex-M0+ has 16 registers:

R0-R12: General-purpose registers for calculations and data
R13 (SP): Stack Pointer - tracks function calls and local variables
R14 (LR): Link Register - stores return addresses for functions
R15 (PC): Program Counter - points to next instruction to execute

Special registers:

APSR: Application Program Status Register - stores condition flags (Zero, Negative, Carry, Overflow)
PRIMASK, CONTROL: Interrupt and privilege control

Register vs. RAM

Characteristic	Registers	RAM (SRAM)
Location	Inside CPU	External to CPU
Access Speed	Instant (0-1 cycles)	Few cycles
Quantity	16 registers (32-bit each)	264KB (270,336 bytes)
Use	Active computation	Program data storage
Programmer Control	Compiler-managed (usually)	Direct allocation possible

Data Registers vs. Address Registers

Data Registers (R0-R7 primarily): Hold actual values being processed

# Conceptually, adding two numbers:
# r0 = 42, r1 = 8
# ADD r0, r0, r1  => r0 = 50

Address Registers (used as pointers): Store memory addresses

# Reading from memory:
# r2 holds address 0x20000100
# LDR r3, [r2]  => Load value FROM address 0x20000100 INTO r3

Peripherals and Memory-Mapped I/O

Microcontrollers use memory-mapped I/O, meaning hardware peripherals (GPIO, ADC, UART) are controlled by reading/writing to specific memory addresses.

Example: GPIO Control

# High-level MicroPython
led = Pin(25, Pin.OUT)
led.value(1)  # Turn on

# What happens internally (simplified):
# Write value '1' to memory address 0x40014004 (GPIO output register)

The MicroPython library handles these low-level details, but understanding memory-mapped I/O helps when:

Debugging hardware issues
Optimising for performance
Using advanced features not exposed in high-level libraries

Your Freenove Kit: Components Overview

The Freenove Ultimate Starter Kit provides all the hardware you need to explore mechatronics. Let's examine the key components you'll be using.

Syllabus Outcome

[PM-UM-11] Identify and describe a range of sensors, actuators and end effectors/manipulators within existing mechatronic systems

Including:

[PM-UM-11.01] Motion sensors
[PM-UM-11.02] Light level sensors
[PM-UM-11.03] Hydraulic actuators
[PM-UM-11.04] Robotic grippers

Component-to-Syllabus Quick Reference

Freenove Kit Component	Syllabus Reference	Type
Ultrasonic Sensor (HC-SR04)	[PM-UM-11.01]	Motion Sensor
PIR Motion Sensor	[PM-UM-11.01]	Motion Sensor
Photoresistor (LDR)	[PM-UM-11.02]	Light Level Sensor
Push Buttons	[PM-UM-11]	Input Device
Potentiometers	[PM-UM-11]	Input Device (Analog)
Servo Motors	[PM-UM-11], [PM-UM-11.04]	Actuator / Gripper Control
DC Motors	[PM-UM-11]	Actuator
Stepper Motors	[PM-UM-11]	Actuator
LEDs / LED Bar	[PM-UM-11]	Output Device
Buzzer	[PM-UM-11]	Output Device
Relay	[PM-UM-11]	Actuator (Switching)
LCD1602 Display	[PM-UM-11]	Output Device

Note on Hydraulic Actuators [PM-UM-11.03]

The Freenove kit uses electric actuators (servos, DC motors, stepper motors). Hydraulic actuators operate on similar control principles but use pressurised fluid instead of electrical power. Understanding electric actuators provides the foundation for working with hydraulic systems in industrial applications.

Input Devices (Sensors) [PM-UM-11.01, PM-UM-11.02]

Passive Components

Resistors (Various values: 220Ω, 1KΩ, 10KΩ, etc.)

Purpose: Limit current flow, divide voltage, pull-up/pull-down for digital inputs
Mechatronic use: Protect LEDs, configure button inputs, voltage dividers for sensors

Potentiometers

Type: Variable resistor with rotary knob
Range: Typically 10KΩ
Mechatronic use:
- Analog input for user control (volume, speed, position)
- Tuning PID control parameters
- Manual calibration

# Reading a potentiometer (analog input)
from machine import ADC, Pin

pot = ADC(Pin(26))  # GP26 is ADC0

while True:
    value = pot.read_u16()  # Returns 0-65535
    voltage = value * 3.3 / 65535
    print(f"Raw: {value}, Voltage: {voltage:.2f}V")
    time.sleep(0.1)

Active Sensors

Push Buttons

Type: Momentary contact switch (SPST - Single Pole Single Throw)
Mechatronic use: User input, emergency stop, mode selection
Requires: Pull-up or pull-down resistor to prevent floating inputs

# Button with internal pull-up resistor
button = Pin(15, Pin.IN, Pin.PULL_UP)

while True:
    if button.value() == 0:  # Pressed (active LOW)
        print("Button pressed!")
    time.sleep(0.1)

Photoresistor (LDR - Light Dependent Resistor) [PM-UM-11.02]

Function: Resistance decreases as light intensity increases
Range: Dark (1MΩ) to Bright (few hundred Ω)
Mechatronic use:
- Automatic lighting control
- Day/night detection
- Light-seeking robots

# Reading light level with photoresistor in voltage divider
light_sensor = ADC(Pin(27))

while True:
    value = light_sensor.read_u16()
    # Higher value = more light (depends on circuit configuration)
    print(f"Light level: {value}")
    time.sleep(0.5)

Ultrasonic Sensor (HC-SR04) [PM-UM-11.01]

Function: Measures distance using ultrasonic sound waves
Range: 2cm to 400cm
Accuracy: ±3mm
Mechatronic use:
- Obstacle avoidance in robots
- Level sensing in tanks
- Automatic door openers
- Parking assistance systems

Operating Principle:

Trigger pin sends 10μs pulse
Sensor emits 8 ultrasonic pulses at 40kHz
Echo pin goes HIGH when pulse sent, LOW when echo received

Measure echo pulse width to calculate distance:

Distance (cm) = (echo_time × speed_of_sound) / 2
Distance (cm) = (echo_time_μs × 0.0343) / 2

# Ultrasonic distance sensor
from machine import Pin
import time

trigger = Pin(16, Pin.OUT)
echo = Pin(17, Pin.IN)

def measure_distance():
    # Send trigger pulse
    trigger.value(0)
    time.sleep_us(2)
    trigger.value(1)
    time.sleep_us(10)
    trigger.value(0)

    # Measure echo pulse width
    while echo.value() == 0:
        pulse_start = time.ticks_us()
    while echo.value() == 1:
        pulse_end = time.ticks_us()

    pulse_duration = time.ticks_diff(pulse_end, pulse_start)
    distance = (pulse_duration * 0.0343) / 2

    return distance

while True:
    dist = measure_distance()
    print(f"Distance: {dist:.1f} cm")
    time.sleep(0.5)

PIR Motion Sensor (Passive Infrared) [PM-UM-11.01]

Function: Detects motion by sensing changes in infrared radiation (body heat)
Output: Digital (HIGH when motion detected)
Mechatronic use:
- Security systems
- Automatic lighting
- Occupancy detection

Output Devices (Actuators) [PM-UM-11.03, PM-UM-11.04]

Note on Hydraulic Actuators

[PM-UM-11.03] While the syllabus mentions hydraulic actuators, the Freenove kit focuses on electric actuators (servos, DC motors, stepper motors) which are more practical for educational projects. Hydraulic actuators operate on the same control principles but use fluid pressure instead of electrical power.

Visual Outputs

LEDs (Light Emitting Diodes)

Types in kit: Individual LEDs, LED bar (10 LEDs), RGB LEDs
Voltage: Typically 2-3V forward voltage
Current: 10-20mA typical
Requires: Current-limiting resistor (220Ω common)

LED Bar Graph

Configuration: 10 LEDs in a single package
Use: Progress indicators, level meters, VU meters
Example: Battery level display, sensor reading visualization

# Controlling LED bar (10 LEDs on GP0-GP9)
from machine import Pin

leds = [Pin(i, Pin.OUT) for i in range(10)]

# Light up first 5 LEDs
for i in range(5):
    leds[i].value(1)

7-Segment Display

Function: Displays digits 0-9 (and some letters)
Types: Common cathode or common anode
Mechatronic use: Counters, timers, sensor readings

LCD1602 (16x2 Character Display)

Specification: 16 characters × 2 lines
Interface: I²C (simplifies wiring - only 2 wires for data)
Mechatronic use: System status, sensor readings, user feedback

Motion Actuators

Servo Motors [PM-UM-11.04]

Type: Rotational actuator with position feedback
Range: Typically 0-180° (some can do 360° continuous rotation)
Control: PWM signal (1-2ms pulse width, 50Hz frequency)
Mechatronic use:
- Robot joints
- Gripper control [PM-UM-11.04] (Robotic grippers are typically controlled by servo motors)
- Camera pan/tilt
- Steering mechanisms

# Servo control with PWM
from machine import Pin, PWM
import time

servo = PWM(Pin(6))
servo.freq(50)  # 50Hz = 20ms period

def set_angle(angle):
    # Convert angle (0-180°) to duty cycle
    # 1ms = 0°, 2ms = 180°
    # Duty cycle in 16-bit: 0-65535
    min_duty = 1638  # ~1ms (2.5% of 65535)
    max_duty = 8192  # ~2ms (12.5% of 65535)
    duty = int(min_duty + (angle / 180) * (max_duty - min_duty))
    servo.duty_u16(duty)

# Sweep servo from 0 to 180 degrees
for angle in range(0, 181, 10):
    set_angle(angle)
    time.sleep(0.05)

DC Motors (with L293D Motor Driver) [PM-UM-11]

Type: Continuous rotation motor
Speed Control: PWM (varying duty cycle)
Direction Control: H-bridge circuit (L293D chip)
Mechatronic use:
- Robot wheels
- Conveyor belts
- Fans and pumps

Stepper Motors (28BYJ-48 with ULN2003 Driver) [PM-UM-11]

Type: Precise positioning motor
Steps: Typically 2048 steps/revolution (with gearing)
Control: Sequential energizing of coils
Mechatronic use:
- 3D printers
- CNC machines
- Camera sliders
- Precise positioning systems

Other Actuators

Buzzer (Active and Passive)

Active buzzer: Fixed frequency, just apply voltage
Passive buzzer: Frequency controlled by PWM, can play tones
Mechatronic use: Alarms, user feedback, musical projects

Relay

Function: Electrically controlled switch for high-power loads
Configuration: SPDT (Single Pole Double Throw)
Ratings: Typically 5V coil, 10A 250VAC / 10A 30VDC contacts
Mechatronic use:
- Controlling AC appliances (lights, fans)
- Switching high-current DC loads
- Safety isolation between logic and power circuits

IMPORTANT SAFETY: Relays allow microcontrollers to control mains voltage (120V/240V AC). Exercise extreme caution—only operate under teacher supervision and use proper insulation.

Integrated Circuits and Modules

74HC595 Shift Register

Function: Expands outputs (3 pins control 8 outputs)
Cascadable: Daisy-chain multiple chips for more outputs
Mechatronic use: Driving LED matrices, multiple outputs with limited pins

L293D Motor Driver

Function: H-bridge IC for bi-directional DC motor control
Channels: Dual H-bridge (controls 2 motors)
Current: Up to 600mA per channel
Features: Built-in flyback diodes for inductive load protection

Power and Connectivity

Breadboard

Purpose: Solderless prototyping platform
Connection: Rows are connected horizontally (in groups of 5), power rails vertically

Breadboard Power Module

Input: 6.5-12V DC (9V battery or wall adapter)
Outputs: 3.3V and 5V regulated supplies
Use: Power components that need different voltages than Pico provides

Jumper Wires

Types: Male-Male, Male-Female
Purpose: Make connections between components

Data in Mechatronic Systems

Understanding how data flows through a mechatronic system is crucial for effective programming and troubleshooting.

Syllabus Outcome

[PM-UM-04] Use different types of data and understand how it is obtained and processed in a mechatronic system, including diagnostic data and data used for optimisation

Sensor Data Types

Analog Signals

Continuous Values

Analog signals represent continuously variable quantities. Examples: temperature, light intensity, sound level, pressure.

Characteristics:

Infinite resolution (in theory—limited by ADC precision in practice)
Voltage-based: Typically 0-3.3V range for Pico
Requires ADC: Must be converted to digital for processing

Pico's ADC Specifications:

Resolution: 12-bit (4096 levels)
Range: 0-3.3V
Channels: 3 external (GP26, GP27, GP28) + 1 internal (temperature sensor)
Accuracy: ±2 LSB (Least Significant Bits)

# Reading analog sensor with voltage conversion
from machine import ADC

sensor = ADC(Pin(26))

raw = sensor.read_u16()  # 16-bit value (0-65535)
# Convert to 12-bit equivalent (0-4095)
value_12bit = raw >> 4  # Right-shift 4 bits

# Convert to voltage
voltage = (value_12bit / 4095) * 3.3

print(f"Raw: {raw}, 12-bit: {value_12bit}, Voltage: {voltage:.3f}V")

Common Analog Sensors in Your Kit:

Potentiometers (0-3.3V based on rotation)
Photoresistors (voltage divider output)
Temperature sensors (LM35: 10mV/°C)

Digital Signals (On/Off)

Binary States

Digital signals have only two states: HIGH (1, 3.3V) or LOW (0, 0V).

Characteristics:

No ambiguity: Clear distinction between states
Fast reading: No conversion needed
Simple logic: Perfect for switches, presence detection

# Digital input with debouncing
button = Pin(15, Pin.IN, Pin.PULL_UP)
last_state = 1

while True:
    current_state = button.value()

    if current_state != last_state:
        if current_state == 0:  # Pressed
            print("Button press detected!")
        time.sleep(0.05)  # Debounce delay

    last_state = current_state

Common Digital Sensors:

Push buttons
PIR motion sensors
Limit switches (end stops)
Hall effect sensors (magnetic detection)

Serial Communication Data (UART, I²C, SPI)

Complex sensors provide data via serial protocols, allowing:

Multiple bytes of information
Multiple sensors on shared bus
Error checking and device addressing

I²C (Inter-Integrated Circuit)

Wires: 2 (SDA - data, SCL - clock) + power and ground
Speed: Typically 100kHz (standard) or 400kHz (fast mode)
Addressing: Each device has unique 7-bit address
Use: LCD displays, sensors (accelerometers, gyroscopes, temperature/humidity)

# I²C sensor example (BME280 - temperature, pressure, humidity)
from machine import I2C, Pin
import time

# Initialize I²C bus
i2c = I2C(0, scl=Pin(5), sda=Pin(4), freq=400000)

# Scan for devices
devices = i2c.scan()
print("I²C devices found:", [hex(device) for device in devices])

# Read sensor (requires sensor library)
# temp, pressure, humidity = bme280.read_data()

UART (Universal Asynchronous Receiver-Transmitter)

Wires: 2 (TX - transmit, RX - receive) + ground
Speed: Configurable baud rate (9600, 115200 common)
Use: GPS modules, Bluetooth modules, debugging output

SPI (Serial Peripheral Interface)

Wires: 4 (MOSI, MISO, SCK, CS) + power/ground
Speed: Very fast (MHz range)
Use: SD cards, displays, high-speed sensors

Actuator Control Signals

PWM (Pulse Width Modulation)

Simulating Analog with Digital

PWM rapidly toggles between HIGH and LOW to create an average voltage level. By varying the duty cycle (percentage of time HIGH), we control power delivery.

Key PWM Parameters:

Frequency: How many times per second the signal repeats
Duty Cycle: Percentage of time signal is HIGH (0-100%)
Period: Time for one complete cycle (Period = 1 / Frequency)

Frequency = 1000Hz (1kHz)
Period = 1ms

Duty Cycle = 25%          Duty Cycle = 75%
  _                          ___
 | |_  _  _  _             | | |_  _  _
 0  250μs 1ms             0 750μs 1ms

PWM Applications:

Device	Frequency	Duty Cycle Effect
LED	1kHz - 10kHz	Brightness (25% = dim, 75% = bright)
DC Motor	1kHz - 20kHz	Speed (0% = stop, 100% = full speed)
Servo	50Hz (20ms period)	Position (1ms = 0°, 1.5ms = 90°, 2ms = 180°)
Buzzer	100Hz - 10kHz	Tone pitch

# PWM for LED brightness control
led_pwm = PWM(Pin(15))
led_pwm.freq(1000)  # 1kHz

# Fade LED in and out
while True:
    # Fade up
    for duty in range(0, 65536, 1024):
        led_pwm.duty_u16(duty)
        time.sleep(0.02)

    # Fade down
    for duty in range(65535, -1, -1024):
        led_pwm.duty_u16(duty)
        time.sleep(0.02)

Diagnostic and Optimisation Data

Mechatronic systems generate data beyond immediate control needs:

Diagnostic Data: [PM-UM-14]

Error logs: Track sensor failures, communication errors
Performance metrics: Response times, cycle counts
Health monitoring: Battery voltage, temperature, current draw
Debugging info: Intermediate calculation values, state transitions

Optimisation Data: [PM-UM-14]

Usage patterns: Most common positions, frequently used features
Efficiency metrics: Energy consumption per task
Calibration data: Sensor drift corrections, mechanical wear compensation
Machine learning: Training data for adaptive algorithms

Example: System Monitoring

# Simple diagnostic logging
import time

def log_system_state(sensors, actuators):
    timestamp = time.time()
    log_entry = {
        'time': timestamp,
        'temp': sensors['temperature'],
        'distance': sensors['ultrasonic'],
        'motor_speed': actuators['motor_pwm'],
        'errors': []
    }

    # Check for anomalies
    if sensors['temperature'] > 60:
        log_entry['errors'].append('TEMP_HIGH')
    if sensors['ultrasonic'] < 5:
        log_entry['errors'].append('OBSTACLE_CLOSE')

    # Log to file or send over serial
    print(log_entry)
    return log_entry

System Integration: Combining Components

Mechatronic systems aren't individual components—they're integrated systems where sensors, controllers, and actuators work together.

Syllabus Outcome

[PM-UM-05] Experiment with software to control interactions and dependencies within mechatronic systems

Including:

[PM-UM-22.01] Motion constraints
[PM-UM-22.02] Degrees of freedom
[PM-UM-22.03] Combination of subsystems
[PM-UM-22.04] Combination of sensors, actuators and end effectors to create viable subsystems

Motion Constraints [PM-UM-05.01]

Definition

Motion constraints define the limits and permissible ranges of movement for actuators and mechanical systems.

Types of Constraints:

1. Physical/Mechanical:

Servo can only rotate 0-180° (mechanical stops)
Linear actuator has fixed stroke length
Robot arm joint cannot bend beyond physical limit

2. Software:

Limit values in code before sending to actuators
Safety zones (e.g., gripper doesn't close beyond certain point)
Velocity limits (ramp up/down instead of instant changes)

3. Electrical:

Maximum current draw (motors can overload power supply)
Voltage limits (over-voltage damages components)
PWM frequency constraints (servos require 50Hz)

# Implementing software constraints
class ConstrainedServo:
    def __init__(self, pin, min_angle=0, max_angle=180):
        self.servo = PWM(Pin(pin))
        self.servo.freq(50)
        self.min_angle = min_angle
        self.max_angle = max_angle

    def set_angle(self, angle):
        # Constrain to safe range
        angle = max(self.min_angle, min(angle, self.max_angle))

        # Convert to duty cycle
        duty = int(1638 + (angle / 180) * 6554)
        self.servo.duty_u16(duty)
        return angle  # Return actual angle set

# Usage
servo = ConstrainedServo(6, min_angle=10, max_angle=170)
servo.set_angle(200)  # Will limit to 170°

Degrees of Freedom (DOF) [PM-UM-05.02]

Definition

Degrees of Freedom represent the number of independent ways a system can move.

Syllabus Outcome

[PM-UM-05.02] Degrees of freedom

Examples:

System	DOF	Independent Movements
Door hinge	1	Rotation around hinge axis
Computer mouse	2	X-axis, Y-axis
Camera gimbal (pan/tilt)	2	Pan (horizontal), Tilt (vertical)
Robot arm (3 joints)	3	Shoulder rotation, elbow bend, wrist rotation
Drone	6	X, Y, Z translation + Roll, Pitch, Yaw rotation

Calculating DOF:

For robotic systems:

DOF = Number of independent actuators (joints)

For a 3-joint robotic arm: - Joint 1 (base rotation): 1 DOF - Joint 2 (shoulder): 1 DOF - Joint 3 (elbow): 1 DOF - Total: 3 DOF

Programming Multiple DOF:

# Coordinated multi-servo control
class RobotArm:
    def __init__(self, base_pin, shoulder_pin, elbow_pin):
        self.base = PWM(Pin(base_pin))
        self.shoulder = PWM(Pin(shoulder_pin))
        self.elbow = PWM(Pin(elbow_pin))

        for servo in [self.base, self.shoulder, self.elbow]:
            servo.freq(50)

    def move_to_position(self, base_angle, shoulder_angle, elbow_angle):
        # Move all joints simultaneously
        self.base.duty_u16(self._angle_to_duty(base_angle))
        self.shoulder.duty_u16(self._angle_to_duty(shoulder_angle))
        self.elbow.duty_u16(self._angle_to_duty(elbow_angle))

    def _angle_to_duty(self, angle):
        return int(1638 + (angle / 180) * 6554)

# Usage
arm = RobotArm(base_pin=6, shoulder_pin=7, elbow_pin=8)
arm.move_to_position(90, 45, 135)  # Position 1
time.sleep(1)
arm.move_to_position(45, 90, 90)   # Position 2

Subsystem Integration

Syllabus Outcomes

[PM-UM-05.03] Combination of subsystems
[PM-UM-05.04] Combination of sensors, actuators and end effectors to create viable subsystems

Complex systems are built from subsystems:

graph TB
    A[Complete Mechatronic System] --> B[Sensing Subsystem]
    A --> C[Control Subsystem]
    A --> D[Actuation Subsystem]
    A --> E[Communication Subsystem]

    B --> B1[Ultrasonic Sensor]
    B --> B2[Photoresistor]
    B --> B3[Buttons]

    C --> C1[Raspberry Pi Pico]
    C --> C2[Decision Logic]
    C --> C3[State Machine]

    D --> D1[Motor Driver]
    D --> D2[DC Motors]
    D --> D3[Servo]

    E --> E1[LCD Display]
    E --> E2[LED Indicators]
    E --> E3[Buzzer]

    style A fill:#e3f2fd
    style B fill:#fff3e0
    style C fill:#f3e5f5
    style D fill:#e8f5e9
    style E fill:#fce4ec

Example: Line-Following Robot

Subsystem 1: Sensing

Two IR sensors detect line position
Return digital signals (line detected or not)

Subsystem 2: Control Logic

# Decision logic based on sensor inputs
if left_sensor == 0 and right_sensor == 0:
    # Both on line: go straight
    move_forward()
elif left_sensor == 1 and right_sensor == 0:
    # Veered left: turn right
    turn_right()
elif left_sensor == 0 and right_sensor == 1:
    # Veered right: turn left
    turn_left()
else:
    # Lost line: search
    search_for_line()

Subsystem 3: Actuation

L293D motor driver
Two DC motors (left and right wheels)

def move_forward():
    left_motor.duty_u16(50000)  # ~75% speed
    right_motor.duty_u16(50000)

def turn_right():
    left_motor.duty_u16(40000)  # Left faster
    right_motor.duty_u16(20000)  # Right slower

Dependencies:

Motors depend on sensor readings
Turning decisions depend on both sensors simultaneously
Speed adjustments depend on how far off-line

Real-Time Considerations

Unlike desktop programs, mechatronic systems operate in real-time with strict timing requirements.

Critical Concepts:

1. Latency - Time delay between sensor input and actuator response

# Measuring response time
start = time.ticks_us()
distance = ultrasonic.measure()
if distance < 20:
    motor.stop()
end = time.ticks_us()
latency = time.ticks_diff(end, start)
print(f"Response latency: {latency}μs")

2. Sampling Rate - How often sensors are read

Too slow: Miss rapid changes
Too fast: Waste processing power, battery

3. Control Loop Frequency - How often control algorithm executes

Typical rates: - Simple LED control: 10-100Hz - Motor control: 50-100Hz - Balancing robot: 100-500Hz - Servo position updates: 50Hz

# Fixed-rate control loop
LOOP_RATE = 50  # Hz
LOOP_PERIOD = 1.0 / LOOP_RATE  # seconds

while True:
    loop_start = time.time()

    # Control logic here
    sensor_value = read_sensor()
    actuator_command = calculate_control(sensor_value)
    set_actuator(actuator_command)

    # Maintain fixed rate
    elapsed = time.time() - loop_start
    if elapsed < LOOP_PERIOD:
        time.sleep(LOOP_PERIOD - elapsed)

Power, Batteries, and Electrical Considerations

Understanding power requirements is critical for reliable mechatronic systems.

Syllabus Outcome

[PM-UM-06] Determine power, battery and material requirements for components of a mechatronic system

Voltage Requirements

Different components operate at different voltages:

Component	Operating Voltage	Notes
Raspberry Pi Pico	1.8V - 5.5V (VSYS) 3.3V (logic level)	USB provides 5V to VSYS Internal regulator provides 3.3V
LEDs	1.8V - 3.3V	Forward voltage depends on color
Servos (micro)	4.8V - 6V	Most common is 5V ±0.5V
DC Motors	3V - 12V	Depends on motor size/type
Logic ICs (74HC595, etc.)	2V - 6V	Typically 3.3V or 5V
Ultrasonic Sensor	5V	But 3.3V logic compatible

Voltage Level Compatibility

The Raspberry Pi Pico uses 3.3V logic. Most components in your Freenove kit are compatible, but always verify:

Input to Pico: Must not exceed 3.3V on GPIO pins
Output from Pico: 3.3V HIGH may be insufficient for some 5V devices
Use level shifters if interfacing with true 5V logic devices

Current Requirements

Current draw varies dramatically by component and operating state:

Component	Typical Current	Peak Current
Pico (idle)	~20mA	~25mA
Pico (busy)	~30mA	~40mA
LED	10-20mA	20mA
Servo (idle)	10mA	-
Servo (moving, no load)	100-200mA	-
Servo (stalled/max load)	500-1000mA	1500mA
DC Motor (small)	100-300mA	1000mA
Ultrasonic Sensor	15mA	15mA
Buzzer	30mA	30mA

Calculating Total Current:

Total Current = Pico + All Active Components

Example System:
- Pico: 30mA
- 3× Servos (moving): 3 × 200mA = 600mA
- 5× LEDs: 5 × 15mA = 75mA
- Ultrasonic sensor: 15mA
- Buzzer: 30mA

Total = 30 + 600 + 75 + 15 + 30 = 750mA

Recommendation: Power supply should provide 1A minimum (safety margin)

Power Supply Options

USB Power (Computer/Wall Adapter)

Voltage: 5V
Current: 500mA (USB 2.0) to 2A+ (wall adapters)
Pros: Convenient for development, programming while powered
Cons: Tethered, limited current for motors/servos

Battery Packs

4× AA Alkaline

Voltage: 6V (1.5V × 4)
Capacity: ~2500mAh
Runtime Example: 2500mAh / 750mA = 3.3 hours
Pros: Readily available, good capacity
Cons: Not rechargeable (alkaline), voltage drops as they deplete

4× AA NiMH Rechargeable

Voltage: 4.8V (1.2V × 4)
Capacity: ~2000-2500mAh
Pros: Rechargeable, consistent voltage
Cons: Slightly lower voltage than alkaline

Li-Po (Lithium Polymer) Battery

Voltage: 3.7V (1S), 7.4V (2S), 11.1V (3S)
Capacity: 500-5000mAh (depends on size)
Pros: High energy density, lightweight, rechargeable
Cons: Requires special charger, can be dangerous if mishandled

Power Distribution

Critical Concept: Common Ground

Essential Rule

All components in a circuit must share a common ground (GND) reference.

Even when using separate power supplies (e.g., batteries for motors, USB for Pico), connect all GND lines together.

Pico (USB 5V)               Motor Battery Pack (6V)
    │                              │
  [Pico]                        [Motors]
    │                              │
   GND ─────────────────────────── GND
        (Common ground connection)

Voltage Regulators

When battery voltage doesn't match component needs, use regulators:

Linear Regulators (LM7805, LM1117):
- Simple, cheap
- Convert higher voltage to lower (e.g., 9V → 5V)
- Waste excess energy as heat
- Suitable for low current (<500mA)
Switching Regulators (Buck/Boost converters):
- Efficient (>85%)
- Can step voltage up or down
- More complex, slightly more expensive
- Suitable for higher currents

Your Freenove Breadboard Power Module:

Input: 6.5-12V DC
Outputs:
- 3.3V regulated
- 5V regulated
Max Current: Typically 700mA per rail

Power Calculations and Safety

Ohm's Law:

V = I × R
P = V × I

Where:
V = Voltage (Volts)
I = Current (Amperes)
R = Resistance (Ohms)
P = Power (Watts)

Example: LED Current-Limiting Resistor

LED Specifications:
- Forward Voltage (V_f): 2.0V
- Desired Current (I_f): 15mA = 0.015A

Supply Voltage: 3.3V

Resistor Value Needed:
R = (V_supply - V_led) / I_desired
R = (3.3V - 2.0V) / 0.015A
R = 1.3V / 0.015A
R = 86.67Ω

Use standard value: 100Ω (nearest common value)

Power dissipated by resistor:
P = I² × R = (0.015)² × 100 = 0.0225W = 22.5mW
(Standard 1/4W resistor is adequate)

Safety Guidelines

1. Never exceed component ratings

Check datasheets for max voltage/current
Add safety margin (e.g., if max is 6V, don't exceed 5.5V)

2. Use fuses or current-limiting circuits

Protects against short circuits
Prevents damage to expensive components

3. Avoid reverse polarity

Double-check power connections before energising
Use diodes for reverse-polarity protection

4. Heat management

High-current circuits generate heat
Ensure adequate ventilation
Use heatsinks for voltage regulators if needed

5. Mains voltage (120V/240V AC) is deadly

Only work with low voltage DC (<12V) without supervision
Relays that switch AC must have proper enclosures

Wiring Diagrams and Circuit Documentation

Professional mechatronic development requires clear documentation. Wiring diagrams are essential for:

Building circuits correctly
Troubleshooting issues
Replicating designs
Collaboration with others

Syllabus Outcome

[PM-UM-07] Develop wiring diagrams for a mechatronic system, considering data and power supply requirements

Schematic Diagrams vs. Fritzing Diagrams

Schematic Diagrams

Purpose: Show electrical connections logically
Use: Professional engineering, understanding circuit function
Advantage: Clear electrical relationships
Disadvantage: Doesn't show physical layout

Fritzing Diagrams (Breadboard View)

Purpose: Show physical component placement
Use: Educational, beginners, assembly instructions
Advantage: Easy to follow for building
Disadvantage: Can be cluttered for complex circuits

Best Practice

Use both: Fritzing for assembly, schematic for understanding circuit operation.

Standard Circuit Symbols

Learn these symbols for reading and creating schematics:

Component	Symbol Description	Notes
Resistor	Zigzag line or rectangle	Include value (e.g., 220Ω, 10kΩ)
LED	Diode triangle with arrows	Anode (+) and cathode (-) marked
Button/Switch	Gap in line with toggle	Show normally open (NO) or normally closed (NC)
Ground	Three horizontal lines (decreasing size)	Common reference point (0V)
Power (Vcc/Vdd)	+ symbol or upward arrow	Indicate voltage (e.g., +5V, +3.3V)
Microcontroller	Rectangle with pin labels	Show used pins only
Motor	Circle with M inside	Indicate DC or servo
Capacitor	Two parallel lines	Polarised vs. non-polarised

Creating Wiring Diagrams

Tools:

Fritzing: Free, breadboard-friendly (fritzing.org)
Tinkercad Circuits: Online, includes simulation (tinkercad.com)
KiCad: Professional, open-source schematic/PCB tool

Best Practices:

Wiring Diagram Guidelines

Visual Clarity:

Use standard wire colors:
- Red: Power (+)
- Black: Ground (-)
- Other colors: Signals
Minimise wire crossings
Group related connections
Label all pins and connections

Completeness:

Show all connections (don't omit "obvious" ones like ground)
Include component values (resistors, capacitors)
Indicate pin numbers for microcontroller
Note any special requirements (pull-up resistors, etc.)

Annotations:

Add notes for critical details
Indicate voltage levels
Mark polarity (for LEDs, electrolytic capacitors)
Reference component datasheets if needed

Example Wiring Description: Button with LED

Components:
- Raspberry Pi Pico
- Push button
- 10kΩ resistor (pull-down for button)
- LED
- 220Ω resistor (current limiting for LED)

Connections:
Button:
  - One terminal → 3.3V (pin 36)
  - Other terminal → GP15 (pin 20) AND to 10kΩ resistor
  - 10kΩ resistor other end → GND

LED:
  - Anode (long leg, +) → 220Ω resistor
  - 220Ω resistor other end → GP14 (pin 19)
  - Cathode (short leg, -) → GND

Reading Component Datasheets

Every component has a datasheet providing specifications and usage information. Key sections:

Absolute Maximum Ratings - Never exceed these values
Recommended Operating Conditions - Normal operating range
Electrical Characteristics - Voltage, current, timing specs
Pin Configuration - Pinout diagram
Application Information - Example circuits, design tips

Example: Reading HC-SR04 Ultrasonic Sensor Datasheet

Operating Voltage: 5V DC
Operating Current: 15mA
Measuring Range: 2cm - 400cm
Resolution: 0.3cm
Measuring Angle: 15°
Trigger Input: 10μs TTL pulse
Echo Output: TTL signal proportional to distance

Accessibility and Inclusive Design

Syllabus Outcome

[PM-UM-08] Determine specialist requirements that influence the design and functions of mechatronic systems designed for people with disability

Designing for People with Disabilities

Mechatronic systems can enhance independence and quality of life for people with disabilities. When designing assistive mechatronics, consider:

Physical Accessibility:

Control Interface:
- Large, easy-to-press buttons for motor impairments
- Voice control for hands-free operation
- Adjustable sensitivity (touch, pressure)
- Accessibility of controls (height, reach)
Force Requirements:
- Minimize effort needed to operate
- Power assist where manual operation is difficult

Sensory Accessibility:

Visual Impairments:
- Audio feedback (speech, tones, beeps)
- Tactile indicators (vibration, texture)
- High-contrast displays
- Screen reader compatibility
Hearing Impairments:
- Visual indicators (LEDs, displays)
- Vibration alerts
- Text-based communication

Cognitive Accessibility:

Simple, intuitive controls
Consistent feedback
Error prevention (confirm critical actions)
Clear instructions (icons, simple language)

Example Assistive Applications

Mobility Assistance

Powered Wheelchair Control

Joystick, sip-puff, or head tracking for control
Obstacle avoidance using ultrasonic sensors
Automatic speed adjustment for safety
Terrain adaptation (ramps, curbs)

Environmental Control

Smart Home Automation

Voice-activated lighting and appliances
Automated door openers
Remote control via smartphone app
Customizable routines (morning, bedtime)

Communication Aids

Augmentative and Alternative Communication (AAC)

Text-to-speech devices
Symbol-based communication boards
Eye-tracking input systems
Predictive text for faster input

Universal Design Principles

Design mechatronic systems that are usable by the widest range of people:

Equitable Use - Usable by people with diverse abilities
Flexibility - Accommodates individual preferences and abilities
Simple and Intuitive - Easy to understand regardless of experience
Perceptible Information - Communicates effectively to the user
Tolerance for Error - Minimizes hazards and consequences of mistakes
Low Physical Effort - Can be used efficiently and comfortably
Size and Space - Appropriate size for approach, reach, and use

Connection to OOP and Project Management

As you progress through the mechatronics module, constantly reflect on how your previous learning applies:

OOP Connections

Classes for Hardware Abstraction:

class UltrasonicSensor:
    def __init__(self, trigger_pin, echo_pin):
        self.trigger = Pin(trigger_pin, Pin.OUT)
        self.echo = Pin(echo_pin, Pin.IN)

    def measure_distance(self):
        # Encapsulated measurement logic
        ...
        return distance

class ServoMotor:
    def __init__(self, pin, min_angle=0, max_angle=180):
        self.servo = PWM(Pin(pin))
        self.servo.freq(50)
        self.min_angle = min_angle
        self.max_angle = max_angle

    def set_angle(self, angle):
        # Encapsulated angle conversion and constraints
        ...

Inheritance for Specialized Components:

class Sensor:  # Base class
    def read(self):
        raise NotImplementedError

class TemperatureSensor(Sensor):
    def read(self):
        # Specific implementation
        return temperature

class DistanceSensor(Sensor):
    def read(self):
        # Specific implementation
        return distance

Project Management Connections

Documentation:

Component lists = Requirements specification
Wiring diagrams = System architecture diagrams
Code comments = Technical documentation

Testing:

Unit test each sensor/actuator individually
Integration testing of subsystems
System testing of complete mechatronic system

Iteration:

Prototype → Test → Refine → Deploy
Agile sprints for project milestones
Version control for code (Git)

Next Steps

Now that you understand the fundamentals of mechatronic hardware and software, you're ready to:

Experiment with Your Kit - Build simple circuits and test code
Learn Control Algorithms - Explore open-loop and closed-loop control
Build Projects - Create integrated mechatronic systems

Additional Resources

Official Documentation

Raspberry Pi Pico:

Freenove Kit:

Tutorial PDF included with kit
Example code on GitHub
Support: support@freenove.com

Learning Platforms

Component References
